Motore elettrico Atex cat.II zona 21

 Cat.II Zona 21

LSPX series, according to IEC 60034,  60072, EN 50281. • Single speed: power 0.09 to 90 kW

 frame  size 63 to 280 mm; 2, 4, 6 and 8 poles,

230/400 V or 400 V

 50 Hz. Y  or Δ, 50 Hz.

IP 65 protection Motors for variable speed operation:

• fitted with thermal probes in winding (obligatory) and bearing probes for frame size ≥ 160 mm;

• on consultation (for selection).

Finish: aluminium casing

Assembled with protected screws. Finishing paint

 RAL 1007 (yellow)

• Two speed: (on request) power 0.09 to 37

kW*, frame size 80 to 280 mm in 2/4, 4/6, 4/8,

6/8, 6/12 poles centrifugal or general use,

PAM or Dahlander; 400 V/

 Protection of the flange and shaft end against atmospheric corrosion. Individual anti-shock packaging.

Mains supply

• Standard construction according to IEC 60038:

- 230/400 V +10% -10% at 50 Hz ;

- 400 V Δ +10% -10% at 50 Hz.

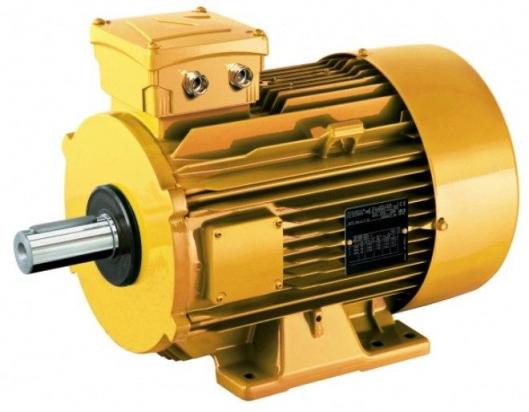

Totally enclosed three-phase asynchronous MOTORS
