Motore Elettrico con inverter integrato

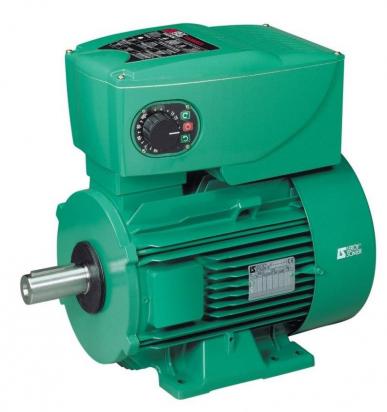

Varmeca

VARMECA, is the result of long experience in variable speed, and benefits from a compact dimension and reduced weight, It is currently available up to 11 kW.

VARMECA produces no noise pollution thanks to the choice of an inaudible switching frequency.

Three phase enclosed variable speed motors in accordance with the IEC Low Voltage Directive.

Range: 0.25 to 11 kW in shaft heights 71 to 160.

Motor control:

  • Easiest machine control thanks to preset functions :
        Motorised potentiometer, preset references
  • Adjustable settings via keypad or PC
  • Process management through international standards communication systems
        (Profibus, CANopen, Ethernet, Interbus S, DeviceNet, ...).

Mains supply:

  • Single-phase 115 V - 0.25 up to 0.37 kW
  • Single-phase 200 / 240V - 0,25 up to 1,5 kW
  • Three-phase 200 / 240V - 0,25 up to 7,5 kW
  • Three-phase 400 / 480V - 0,25 up to 11 kW
